Description

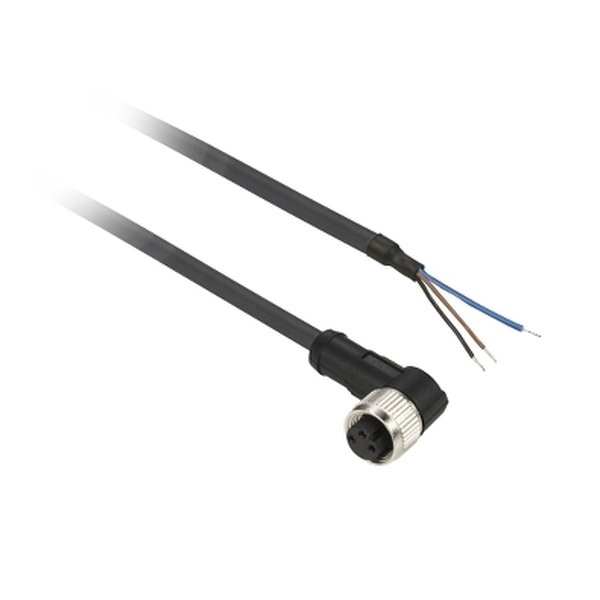

Telemecanique Sensors XZCP0266L2 — Pre wired connectors XZ. Manufacturer designation: Pre wired connectors XZ, elbowed female, Ø 8. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XZCP0266L2 |
| Product Category | Sensors |
| Range of product | Telemecanique Cabling components |
| Accessory / separate | Cabling accessory |
| Series name | General purpose |
| Electrical connection | Elbowed female connector Ø 8 mm, 3 pins |
| Cable connector fixing | Clip-on |
| Status LED | Without |
| Cable length | 2 m |
| Cable outer diameter | 5.2 mm |
| Cable composition | 3 x 0.34 mm² |
| Wire insulation material | PUR |
| [Ue] rated operational voltage | 60 V AC |
| [In] rated current | 4 A |
| Contact resistance | 5000 µOhm |
| Minimum insulating resistance | 1 GΩ |
| Net weight | 0.05 kg |
| IP degree of protection | IP65 |
| Product certifications | cULus |
| Ambient air temperature for operation | -40…80 °C static |
| -5…80 °c | flexing |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Condition | New & original |
| Availability | On request |
