Description

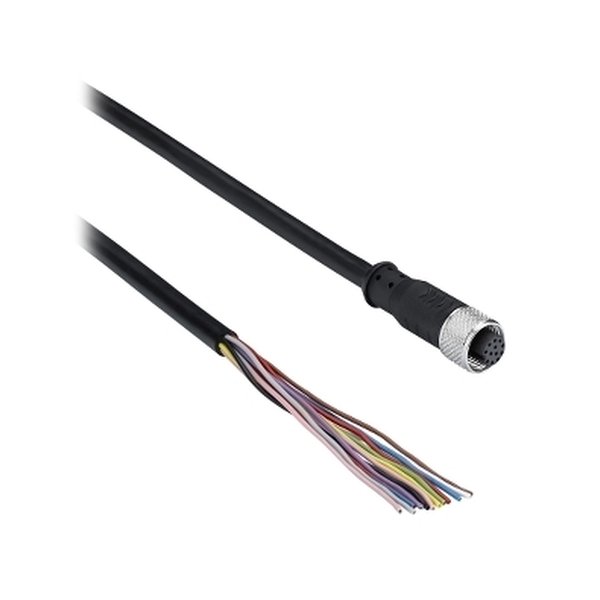

Telemecanique Sensors XZCP57V12L5 — M12 12 pin straight female connector 5. Manufacturer designation: M12 12 pin straight female connector 5 m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XZCP57V12L5 |
| Product Category | Sensors |
| Range of product | Telemecanique Cabling components |
| Accessory / separate | Cabling accessory |
| Series name | General purpose |
| Electrical connection | Straight female connector M12, 12 pins |
| Cable connector fixing | Screw-on |
| Collar material | Metal |
| Status LED | Without |
| Cable length | 5 m |
| Cable outer diameter | 6.5 mm |
| Cable composition | 12 x 0.25 mm² |
| Wire insulation material | PVC |
| [Ue] rated operational voltage | 30 V DC |
| [In] rated current | 1.5 A |
| Contact resistance | 10 mOhm |
| Minimum insulating resistance | 100 MOhm |
| Net weight | 0.35 kg |
| IP degree of protection | IP67 |
| Ambient air temperature for operation | -30…80 °C static |
| Ambient air temperature for storage | -30…80 °C |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 3.000 cm |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
