Description

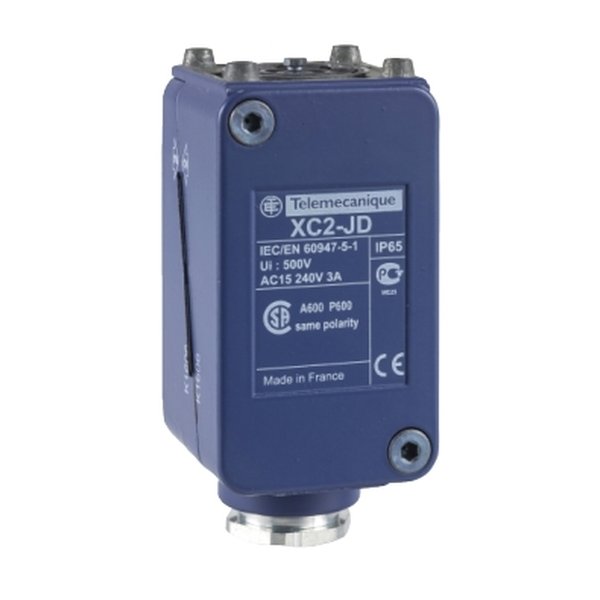

Telemecanique Sensors ZC2JD29 — Limit switch body base. Manufacturer designation: Limit switch body base, Limit switches XC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | ZC2JD29 |
| Product Category | Sensors |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component | Limit switch body base |
| Device short name | ZC2J |
| Body type | Plug-in body |
| Product compatibility | XC2J |
| Body material | Metal |
| Cable entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Local display | Without |
| Net weight | 0.38 kg |
| Terminals description ISO n°1 | (21-22)NC |
| IP degree of protection | IP65 |
| IK degree of protection | IK08 |
| Ambient air temperature for operation | -25…70 °C for standard environment |
| Ambient air temperature for storage | -40…70 °C |
| Environmental characteristic | Standard environment |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 185.000 g |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
