Description

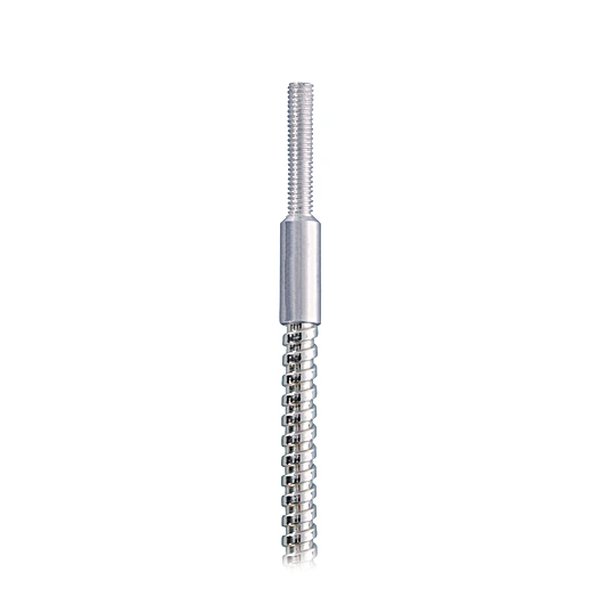

Wenglor 081-354-202 — Glass Fiber-Optic Cable Reflex Mode. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Wenglor |
|---|---|
| Article No. (MPN) | 081-354-202 |
| Product Category | Sensor Accessories |
| Fiber Bundle Diameter | 0.8 mm |
| Range with Sensor Type U_88__ | 40 mm |
| Range with Sensor Type U_66__ | 20 mm |
| Range with Sensor Type U_55__ | 10 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
| Fiber Distribution | statistical mixture |
| Temperature Range | -25 … 180 °C |
| Bending Radius | 45 mm |
| Fiber-Optic Length L | 0.5 m |
| Jacket Material | Stainless steel, V2A (1.4301/304) |
| Fiber Optic Material | Glass |
| Material End Sleeve | Aluminum |
| End Sleeve No. | 54 |
| End sleeve shape | Straight with shoulder and thread |
| Light Emission | straight |
| Connection Type | XXX |
| Weight | 24 g |
| Scope of delivery | 1 x fiber-optic cable |
| Condition | New & original |
| Availability | On request |
Download official Wenglor datasheet (PDF)
Independent distributor — not an authorised Wenglor dealer. All parameters are taken from the official manufacturer documentation.
