Description

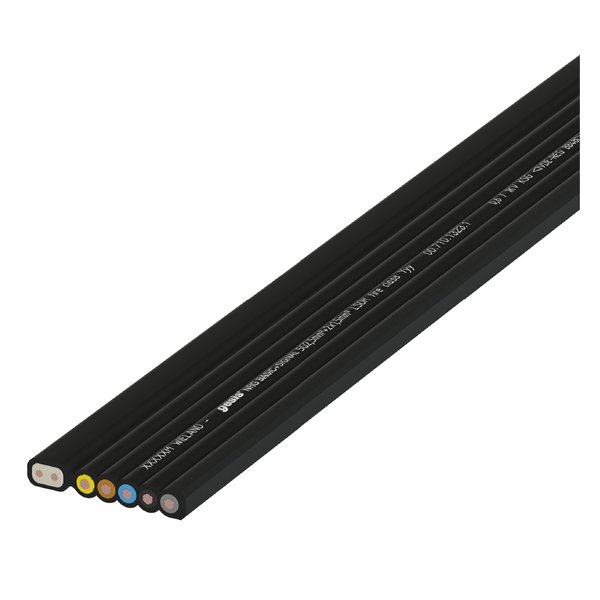

Wieland 5G2,5+2×1,5 PVC OS E — FLAT CABLE. Manufacturer designation: Flat cable 5G2,5+2×1,5 PVC OS. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Wieland |
|---|---|
| Model / Type | 5G2,5+2×1,5 PVC OS E |
| Article No. (MPN) | 00.712.1323.1 |
| Product Category | Cables & Wiring |
| Volume single part | 540 ccm |
| Rated voltage | 600 V / 1.000 V |
| Rated voltage 2 | 1000 V |
| Rated current | 20 A |
| Mechanical coding | yes |
| Nominal cross section conductor | 2.5 mm² |
| Nominal voltage UN | 1000 V |
| Nominal voltage U0 | 600 V |
| Fire load | 1.755 kWh/m |
| Conductor category | class 5 = flexible |
| Core insulation | PE |
| Yellow/green conductor | yes |
| Screen | no |
| Material outer sheath | PVC |
| Color outer sheath | black |
| Flame retardant | according to DIN 60332-1-2 |
| Halogen free (according to EN 60754-12) | no |
| Cable width approx. | 36.9 mm |
| Cable height approx. | 6.3 mm |
| Nominal voltage U | 1000 V |
| Condition | New & original |
| Availability | On request |
Download official Wieland datasheet (PDF)
Independent distributor — not an authorised Wieland dealer. All parameters are taken from the official manufacturer documentation.
