Description

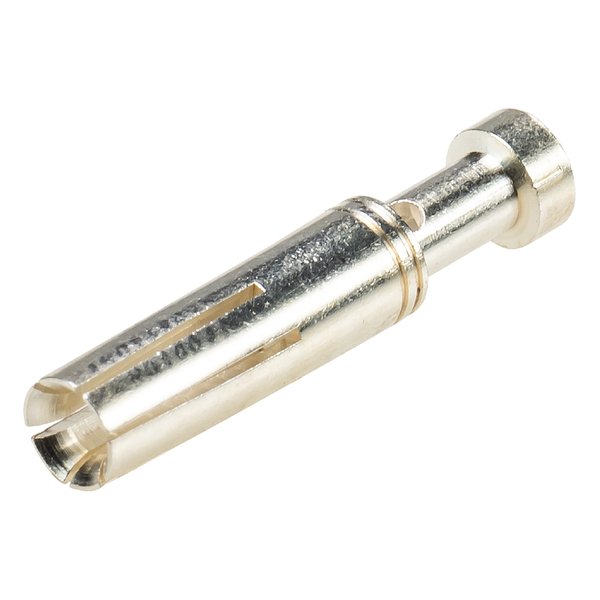

Wieland 0,75-1 QMM AG — FEMALE CONTACT. Manufacturer designation: Female contact 0,75-1 QMM AG. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Wieland |
|---|---|
| Model / Type | 0,75-1 QMM AG |
| Article No. (MPN) | 02.123.7102.0 |
| Product Category | Terminals & Connectors |
| Volume single part | 1.74 ccm |
| Wire strip length | 7 mm |
| Min. conductor cross section flexible wire | 0.75 mm² |
| Max. conductor cross section flexible wire | 1 mm² |
| Min. UL/CSA wire diamter flexible wire | 18 AWG |
| Max. UL/CSA wire diamter flexible wire | 18 AWG |
| Connection type | crimp |
| Material | brass |
| Massive contact | yes |
| Contact pin diameter | 2.5 mm |
| Contact resistance | 1.5 mOhm |
| Etim 5.0 | contact for industrial connectors |
| Eclass 8.1 | contact for industrial connectors |
| Etim 4.0 | contact for industrial connectors |
| Etim 3.0 | contact for heavy duty connectors |
| Etim 6.0 | EC000796 |
| Etim 7.0 | EC000796 |
| Eclass 11 | 27440204 |
| Etim 8.0 | EC000796 |
| Etim 9.0 | EC000796 |
| Condition | New & original |
| Availability | On request |
Download official Wieland datasheet (PDF)
Independent distributor — not an authorised Wieland dealer. All parameters are taken from the official manufacturer documentation.
