Description

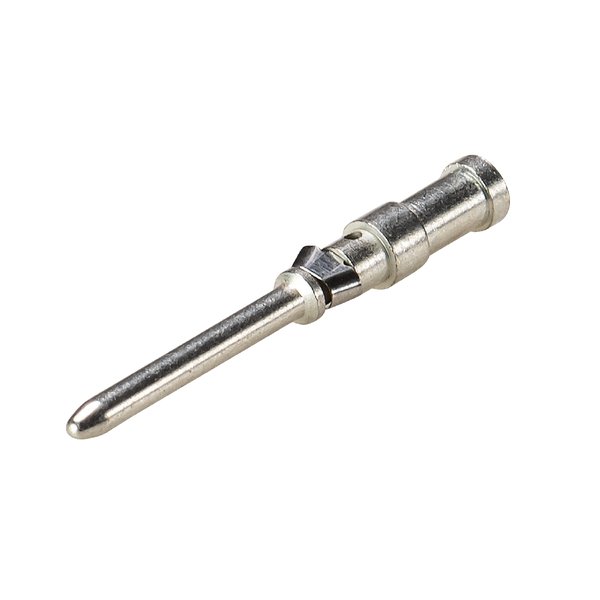

Wieland D 1,6- 0,75-1,0 QMM — MALE CONTACT. Manufacturer designation: Male contact D 1,6- 0,75-1,0 QMM. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Wieland |
|---|---|
| Model / Type | D 1,6- 0,75-1,0 QMM |
| Article No. (MPN) | 05.544.4329.6 |
| Product Category | Terminals & Connectors |
| Volume single part | 0.56 ccm |
| Wire strip length | 8 mm |
| Connection type | crimp |
| Material | brass |
| Massive contact | yes |
| Contact pin diameter | 1.6 mm |
| Contact resistance | 5 mOhm |
| Etim 5.0 | contact for industrial connectors |
| Eclass 8.1 | contact for industrial connectors |
| Etim 4.0 | contact for industrial connectors |
| Etim 6.0 | EC000796 |
| Etim 7.0 | EC000796 |
| Eclass 11 | 27440204 |
| Etim 8.0 | EC000796 |
| Etim 9.0 | EC000796 |
| ROHS conformity status | compliant/exempted |
| ROHS exceptions | III-6(c) |
| REACH-SVHC conformity status | Duty-To-Declare |
| REACH-SVHC substances | Plumbum |
| REACH-SVHC CAS numbers | 7439-92-1 |
| Condition | New & original |
| Availability | On request |
Download official Wieland datasheet (PDF)
Independent distributor — not an authorised Wieland dealer. All parameters are taken from the official manufacturer documentation.
