Description

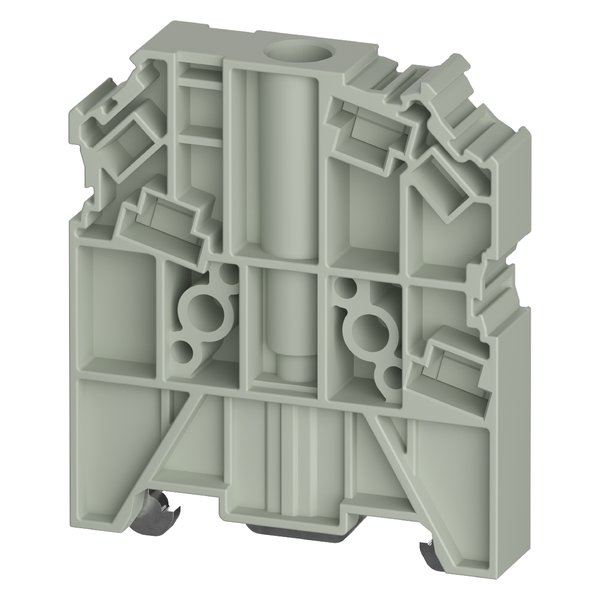

Wieland WEFN 6N — END BRACKET. Manufacturer designation: End bracket WEFN 6N. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Wieland |
|---|---|
| Model / Type | WEFN 6N |
| Article No. (MPN) | 0D.200.0555.0 |
| Product Category | Terminals & Connectors |
| Volume single part | 61.645 ccm |
| Color | grey |
| Width/grid dimension | 12.25 mm |
| Latching | screwable |
| Length | 56.4 mm |
| Mounting method | DIN rail (top hat rail) |
| Height | 63.4 mm |
| Tightening moment | 0.8 Nm |
| Halogen free | yes |
| Etim 5.0 | end bracket |
| Eclass 8.1 | end bracket |
| Etim 4.0 | end bracket |
| Etim 3.0 | end bracket |
| Etim 6.0 | EC001041 |
| Etim 7.0 | EC001041 |
| Eclass 11 | 27141135 |
| Etim 8.0 | EC001041 |
| Etim 9.0 | EC001041 |
| REACH-SVHC conformity status | compliant |
| Condition | New & original |
| Availability | On request |
Download official Wieland datasheet (PDF)
Independent distributor — not an authorised Wieland dealer. All parameters are taken from the official manufacturer documentation.
