Description

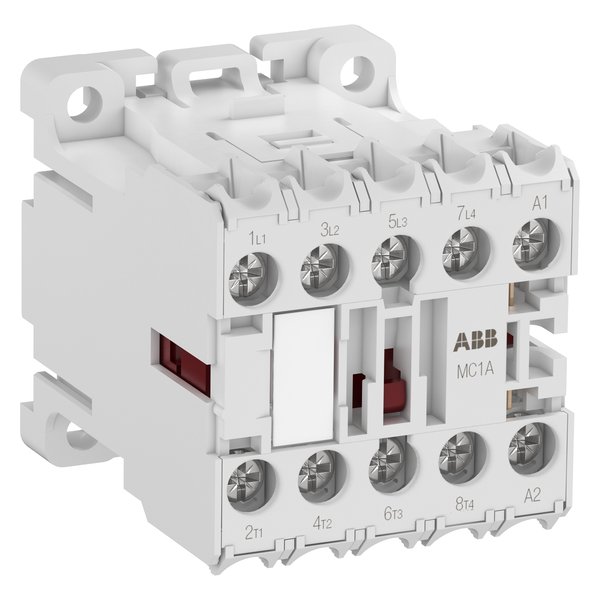

The MC1A400AR1 mini contactor is a dimension optimized 4 pole contactor with special screw terminals for a connection. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Main Contacts NO | 4 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 4P |
| Rated Operational Voltage | Main Circuit 690 V AC; Main Circuit 440 V DC |
| Rated Frequency (f) | Control Circuit 50 Hz; Control Circuit 60 Hz; Main Circuit 50 Hz; Main Circuit 60 Hz; Main Circuit DC |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 20 A; (690 V) 70 °C 16 A; (230 V) 55 °C 20 A; (230 V) 70 °C 16 A; (400 V) 55 °C 20 A; (400 V) 70 °C 16 A; (500 V) 55 °C 20 A; (500 V) 70 °C 16 A |
| Rated Operational Current AC-3 (Ie) | (230 V) 55°C 9 A; (400 V) 55 °C 9 A; (500 V) 55 °C 8 A; (690 V) NO 55°C 5 A |
| Rated Operational Power AC-3 (Pe) | (230 V) Three Phase 2.2 kW; (400 V) Three Phase 4 kW; (500 V) Three Phase 4 kW; (690 V) Three Phase, NO 4 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie / AC-3 (per IEC 60947-4-1) |
| Rated Making Capacity AC-3 | 10 x Ie / AC-3 (per IEC 60947-4-1) |
| Rated Short-time Withstand Current (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cyc/hr; (AC-15) 360 cyc/hr; (AC-3) 1200 cyc/hr; (DC-1) 600 cyc/hr; (DC-13) 360 cyc/hr; (DC-3) 600 cyc/hr |
| Coil Operating Limits | (per IEC 60947-4-1) AC supply 0.85…1.1 x Uc (θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 24 V AC |
| Coil Consumption | Average Holding 50 Hz 5.3 V·A; Average Pull-in 50 Hz 5.3 V·A |
| Power Loss | AC-1 per Pole 0.7 W |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1 |
| Mechanical Durability | Nr. Operations 10000000 cycle |
| Mounting on DIN Rail | TH35-15 (35×15 mm, IEC 60715); TH35-7.5 (35×7.5 mm, IEC 60715) |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Height | 48 mm |
| Product Net Weight | 0.17 kg |
| Customs Tariff Number | 85365080 |
| EAN | 4013614543739 |
| Connecting Capacity Main Circuit | Flexible 1/2x 0.75…2.5 mm²; Rigid 1/2x 0.75…2.5 mm² |
| Country of origin | Bulgaria |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
