Description

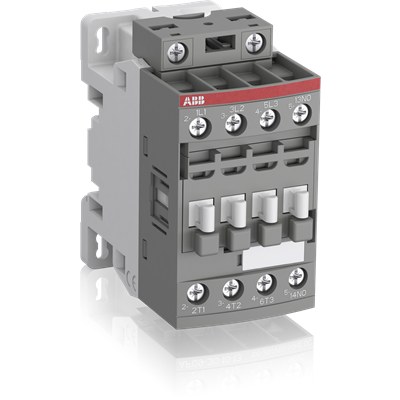

The AF09Z-30-10-20 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Conventional free current AC-1 | 25 A |
|---|---|
| Rated operational current AC-3 at 400 V | 9 A |
| Motor power at 400 V | 4 kW / 400 V AC (AC-3) |
| Rated operational voltage | Main Circuit 690 V |
| Control supply voltage | 12-20 V DC |
| Poles and contact configuration | 3P; main: 3 NO / 0 NC; auxiliary: 1 NO / 0 NC |
| Auxiliary circuit | 690 V; 50 / 60 Hz; acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Width | 45 mm |
| Depth | 77 mm |
| Height | 86 mm |
| Weight | 0.31 kg |
| EAN | 3471523113206 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
