Description

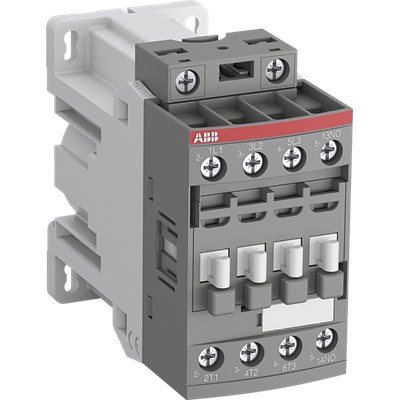

3-pole – 690 V IEC or 600 UL contactor with one built-in auxiliary contact and screw terminals. Controls motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL. Switches power circuits up to 25 A (AC-1) or 25 A UL general use. 24 V DC coil, featuring a reduced holding coil consumption down to 1.7 W. Direct PLC control at >= 250 mA 24 V DC without an interface relay. Surge protection is built in. The block-type design accepts add-on auxiliary contact blocks and accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of poles | 3P |
|---|---|
| Main contacts NO / NC | 3 / 0 |
| Auxiliary contacts NO / NC | 0 / 1 |
| Rated operational voltage | 690 V (main & auxiliary circuits); 600 V UL |
| Rated frequency | 50 / 60 Hz |
| Control supply voltage | 24 V DC coil |
| Rated operational current AC-3 (60 °C) | 9 A at 380/400 V, 415 V, 440 V, 220-240 V; 9.5 A at 500 V; 7 A at 690 V |
| Motor power AC-3 | 4 kW at 400 V AC / 5 hp at 480 V UL |
| Rated operational current AC-1 (690 V) | 25 A at 40 °C and 60 °C; 22 A at 70 °C |
| Conventional free-air thermal current Ith | 35 A (open, IEC 60947-4-1, 40 °C); 16 A (IEC 60947-5-1, 40 °C) |
| Holding power (coil) | 1.7 W (reduced via AF technology) |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Dimensions (width x depth x height) | 45 mm x 97 mm x 86 mm |
| Net weight | 0.43 kg |
| EAN | 3471523113398 |
| Customs tariff number | 85364900 |
| Ac-15 ie | 3 A (400/440 V), 4 A (220/240 V), 6 A (24/127 V), 2 A (500/690 V) |
| Country of origin | France |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
