Description

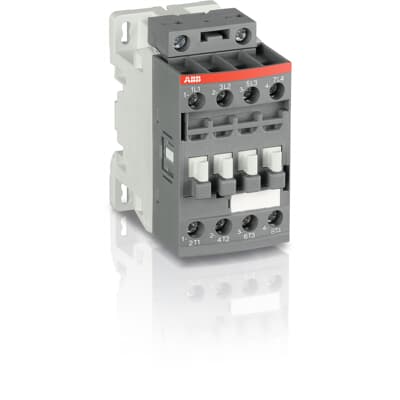

The AF09ZB-40-00-22 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A at 380/400 V, 60 °C; 7 A at 690 V, 60 °C |
|---|---|
| Motor power at 400 V (AC-3) | Up to 4 kW / 400 V |
| AC-1 rated operational current | 25 A at 690 V (40 °C and 60 °C) |
| Rated operational voltage (main circuit) | 690 V |
| Poles / contact configuration | 4P; 4 NO + 0 NC main; 0 NO + 0 NC auxiliary |
| Control supply voltage range | 48–130 V, 50/60 Hz and DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 and others |
| Dimensions (W × D × H) | 45 mm × 77 mm × 86 mm |
| Net weight | 0.31 kg |
| EAN | 3471523124424 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
