Description

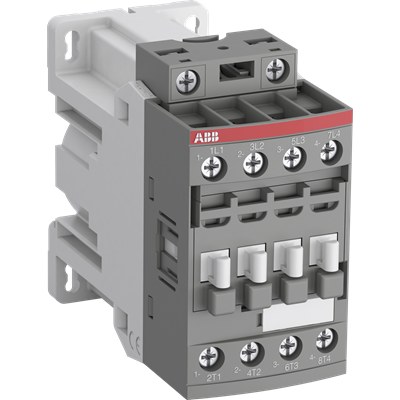

The AF09Z-22-00-30 is a 4-pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a 24 V DC coil, featuring a reduced holding coil consumption down to 1.7 W and offering the possibility of a direct control by PLC-output >= 250 mA 24 V DC, without need of additional interface relay, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A @ 415/440/380/400/220/230/240 V (60 °C); 9.5 A @ 500 V (60 °C); 7 A @ 690 V (60 °C) |
|---|---|
| Motor power at 400 V (AC-3) | 4 kW |
| AC-1 rated operational current | 25 A at 690 V (40 °C and 60 °C); 22 A at 690 V (70 °C) |
| Rated operational voltage (main circuit) | 690 V IEC / 600 V UL |
| Rated insulation voltage | 690 V (IEC 60947-4-1) / 600 V (UL/CSA) |
| Poles and contact configuration | 4P; 2 main NO + 2 main NC; 0 auxiliary NO; 0 auxiliary NC |
| Control supply voltage | 24 V DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1 |
| Dimensions (W × D × H) | 45 mm × 97 mm × 86 mm |
| Weight | 0.43 kg |
| EAN | 3471523116696 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 97 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
