Description

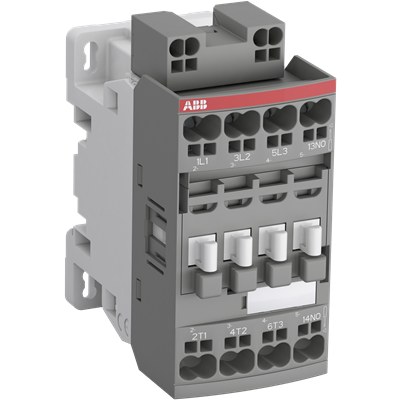

The AF09B-30-10K-14 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and push-in spring terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated operational current Ie AC-3 (60 °C) | 9 A (380/400 V); 9 A (415/440 V); 9.5 A (500 V); 7 A (690 V) |
|---|---|
| Rated operational power Pe | 4 kW (400 V AC-3); 5 hp (480 V UL) |
| Rated operational current Ie AC-1 (690 V) | 25 A (40 °C); 25 A (60 °C); 22 A (70 °C) |
| Conventional free-air thermal current Ith | 35 A (IEC 60947-4-1); 16 A (IEC 60947-5-1) |
| Number of poles | 3P |
| Number of main contacts NO | 3 |
| Number of main contacts NC | 0 |
| Number of auxiliary contacts NO | 1 (built-in) |
| Rated operational voltage | 690 V |
| Control voltage range | 250-500 V 50/60 Hz and DC |
| Rated frequency | 50/60 Hz |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-4-1; CSA C22.2 No. 60947-4-1; IEC 60077-1/-2 (applicable parts); EN 50155 (applicable parts); TR CU 001/2011; IEC 61373 (applicable parts) |
| Dimensions (W x H x D) | 45 x 92.3 x 77 mm |
| Weight | 0.325 kg |
| EAN | 3471523008830 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
