Description

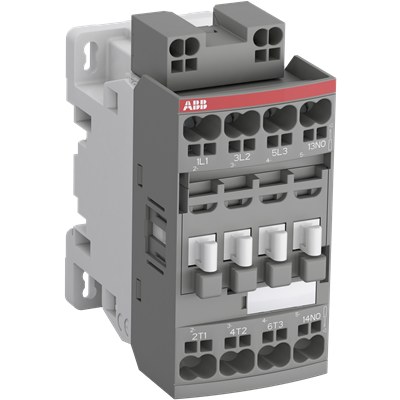

The AF09-22-00K-14 is a 4 pole – 690 V IEC or 600 UL contactor with Push-in Spring terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of poles | 4P |
|---|---|
| Main contact configuration | 2 NO + 2 NC |
| Auxiliary contacts | 0 NO + 0 NC |
| AC-3 rated operational current (380/400 V) 60 °C | 9 A |
| AC-3 rated operational current (415 V) 60 °C | 9 A |
| AC-3 rated operational current (440 V) 60 °C | 9 A |
| AC-3 rated operational current (500 V) 60 °C | 9.5 A |
| AC-3 rated operational current (690 V) 60 °C | 7 A |
| AC-3 rated operational current (220/230/240 V) 60 °C | 9 A |
| Rated operational power AC-3 (400 V) | 4 kW |
| AC-1 rated operational current (690 V) 40 °C | 25 A |
| AC-1 rated operational current (690 V) 60 °C | 25 A |
| AC-1 rated operational current (690 V) 70 °C | 22 A |
| Rated operational voltage, main circuit | 690 V IEC / 600 V UL |
| Rated insulation voltage (Ui) | 690 V (IEC/VDE 0110 Gr. C); 600 V (UL/CSA) |
| Conventional free-air thermal current (Ith) | 35 A (IEC 60947-4-1, open contactors, Θ = 40 °C) |
| Control supply voltage (50 Hz) | 250–500 V |
| Control supply voltage (60 Hz) | 250–500 V |
| Control supply voltage (DC) | 250–500 V |
| Rated frequency | 50/60 Hz |
| Surge protection | Built-in |
| Protection rating | Not stated in page content |
| Max. electrical switching frequency AC-1 | 600 cycles per hour |
| Max. mechanical switching frequency | 3600 cycles per hour |
| Power loss per pole AC-3 | 0.15 W |
| Terminal type | Push-in Spring |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Width | 45 mm |
| Depth / length | 77 mm |
| Height | 92.3 mm |
| Net weight | 0.285 kg |
| EAN | 3471523018587 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
