Description

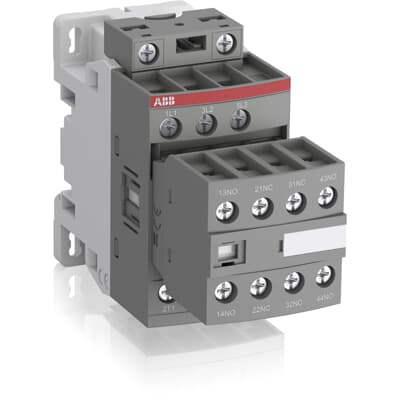

AF12-30-22-12 48-130V50/60HZ-DC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | (380/400 V) 60 °C: 12 A |
|---|---|
| Motor power at 400 V (AC-3) | 5.5 kW |
| AC-1 rated operational current | (690 V) 40 °C: 28 A |
| Rated operational voltage | Main circuit 690 V; Auxiliary circuit 690 V |
| Number of poles | 3P |
| Main contacts NO | 3 |
| Main contacts NC | 0 |
| Auxiliary contacts NO | 2 |
| Auxiliary contacts NC | 2 |
| Control supply voltage range | 48–130 V 50/60 Hz and DC |
| Protection rating | Not stated |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, UL 60335-2-40, CSA C22.2 No. 60947-4-1, CSA C22.2 No. 60335-2-40 |
| Dimensions (W × D × H) | 45 mm × 110.5 mm × 86 mm |
| Net weight | 0.32 kg |
| Country of origin | France |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 111 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
