Description
AF16Z..K 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of poles | 3P |
|---|---|
| Number of main contacts NO | 3 |
| Number of main contacts NC | 0 |
| Number of auxiliary contacts NO | 0 |
| Number of auxiliary contacts NC | 1 |
| AC-3 rated operational current (Ie) | (415 V) 60 °C 18 A; (440 V) 60 °C 18 A; (500 V) 60 °C 15 A; (690 V) 60 °C 10.5 A; (380 / 400 V) 60 °C 18 A; (220 / 230 / 240 V) 60 °C 18 A |
| AC-1 rated operational current (Ie) | (690 V) 40 °C 30 A; (690 V) 60 °C 30 A; (690 V) 70 °C 26 A |
| Rated operational voltage | Auxiliary Circuit 690 V; Main Circuit 690 V |
| Control supply voltage | 24VDC (from catalog description; no dedicated control-supply-voltage attribute row shown) |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Product net width | 45 mm |
| Product net depth / length | 97 mm |
| Product net height | 92.3 mm |
| Product net weight | 0.435 kg |
| EAN | 3471523156296 |
| Customs tariff number | 85364900 |

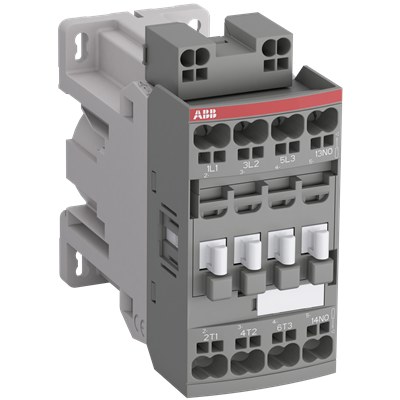

| Catalog description | AF16Z-30-01K-30 24VDC Contactor |
| Country of origin | France |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
