Description

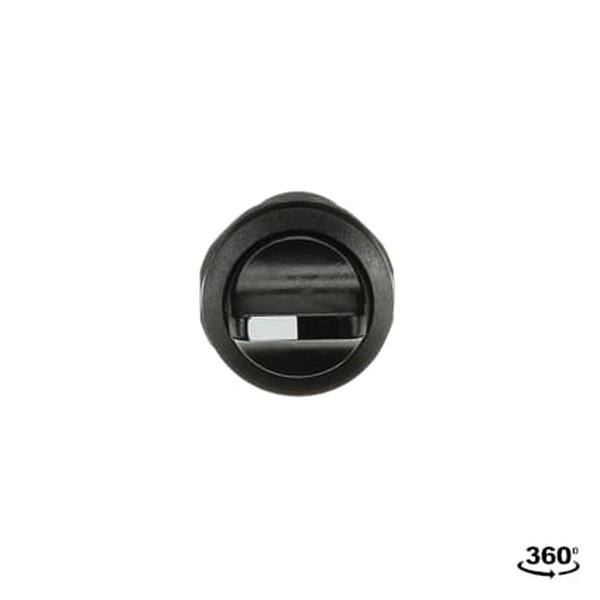

The C2SS1-10B-01 Selector Switch is: Compact – Selector Switch – 2-position – Maintained – Short handle – Black – Non-illuminated – Black Plastic – 1NC – 0 NO – 1 NC – 24 … 300, 300 V This Selector Switch is part of ABB’s compact range, the most efficient all-in-one solution, reducing installation time and cost. The compact range has a high level of dust and water resistance. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Maintained |
|---|---|
| Sub-Function | 2-position |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 … 300 V; Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A; (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A; (220 / 240 V) 2 A |
| Power Loss | Maximum 3.5 W |
| Ambient Air Temperature | Operation -25 … +70 °C; Storage -40 … +85 °C |
| Colour | Black |
| Bezel Material | Plastic |
| Enclosure Type NEMA | Type1; Type12; Type13; Type3R; Type4; Type4X |
| Mechanical Durability | 0.5 million |
| Terminal Type | Screw Terminals |
| Product Net Width | 30 mm |
| Product Net Height | 30 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.02 kg |
| Customs Tariff Number | 8536508000 |
| Illumination | Non-illuminated |
| Maintained Positions | B, C |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5…1.5 mm²; Flexible with Ferrule 2 x 0.5…1.5 mm²; Flexible with Insulated Ferrule 1 x 0.5…1.5 mm²; Flexible with Insulated Ferrule 2 x 0.5…1.5 mm²; Flexible 1 x 0.5 …1.5 mm²; Flexible 2 x 0.5 …1.5 mm² |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Bag x 10 |
| Product status (supplier data) | Active |
