Description

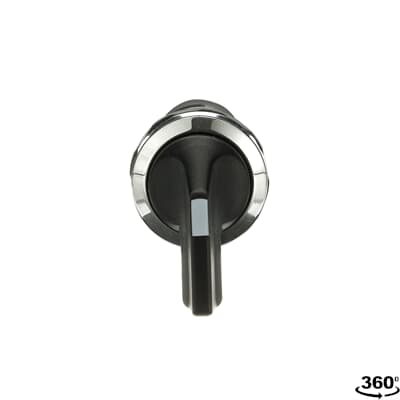

Compact selector switch, 1NO + 1NC, 24…300 V; part of ABB’s compact range, described as the most efficient all-in-one solution, reducing installation time and cost, with a high level of dust and water resistance. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Auxiliary Contacts NC | 1 |
|---|---|
| Number of Auxiliary Contacts NO | 1 |
| Pollution Degree | 3 |
| Rated Insulation Voltage Ui | 300 V |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Frequency | 50 / 60 Hz |
| Rated Operational Voltage | 24 … 300 V; Maximum 300 V |
| Rated Operational Current DC-13 | 24 V 0.3 A; 125 V 0.2 A |
| Rated Operational Current AC-15 | 240 V 1 A |
| Power Loss | Maximum 5 W |
| Wire Stripping Length | 6 mm |
| Degree of Protection | Front IP66; Front IP67; Front IP69K; Terminals IP20 |
| Ambient Air Temperature | Operation -25 … +70 °C; Storage -40 … +85 °C |
| Enclosure Type NEMA | Type1; Type12; Type13; Type3R; Type4; Type4X |
| Terminal Type | Screw Terminals |
| Product Net Height | 40 mm |
| Product Net Weight | 0.032 kg |
| EAN | 7320500555316 |
| Customs Tariff Number | 85365019 |
| Tightening Torque | 0.8 N·m |
| Connecting Capacity UL/CSA | 1x 22…14 AWG; 2x 22…14 AWG |
| Country of origin | China |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Bag x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
