Description

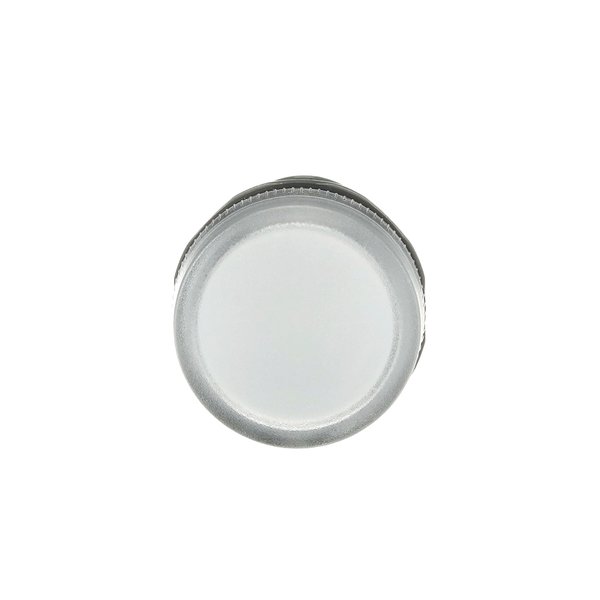

The CL2-501C Pilot Light is: Compact – Pilot Light – Pilot light head – Clear – Illuminated – 12V DC This Pilot Light is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Operational Voltage | 12 V DC; Supply Circuit 12V DC V |
|---|---|
| Power Loss | Maximum 3.5 W |
| Wire Stripping Length | 8 mm |
| Ambient Air Temperature | Operation -30 … 70 °C; Storage -40 … +85 °C |
| Colour | Clear |
| Lamp Type | 12V DC, integrated LED |
| Enclosure Type NEMA | Type1; Type12; Type13; Type3R; Type4; Type4X |
| Pollution Degree | 3 |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Degree of Protection | Front IP66; Front IP67; Front IP69K; Terminals IP20 |
| Product Net Width | 30 mm |
| Product Net Height | 30 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 0.018 kg |
| Customs Tariff Number | 8536619090 |
| Illumination | Illuminated; Illuminated / Illuminated |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75…2.5 mm²; Flexible with Ferrule 2 x 0.75…2.5 mm²; Flexible with Insulated Ferrule 1 x 0.75…2.5 mm²; Flexible with Insulated Ferrule 2 x 0.75…2.5 mm²; Flexible 1 x 0.75 … 2.5 mm² |
| Tightening Torque | 0.9 N·m |
| Connecting Capacity UL/CSA | 1x 18…14 AWG; 2x 18…14 AWG |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| EAN | 7320500556078 |
| Country of origin | China |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Bag x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
