Description

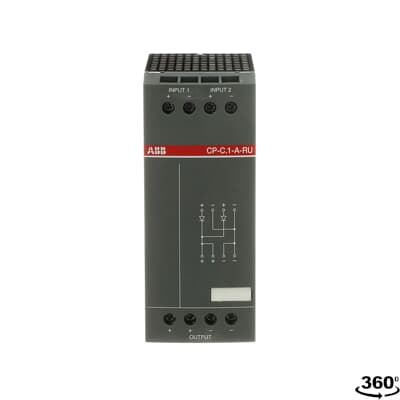

The CP-C.1-A-RU is a redundancy unit for CP-C.1 as well as CP-S.1 range power supplies. The input voltage range is 10 – 58 V DC. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Redundancy unit |
|---|---|
| Input Voltage (Uin) | 10 … 58 V DC |
| Rated Frequency (f) | DC |
| Rated Output Voltage | 12 … 48 V DC |
| Output Voltage (Uout) | 10 … 58 V DC |
| Rated Output Current | 40 A |
| Output Current | 60 A |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 60 V |
| Degree of Protection | Housing IP20; Terminals IP20 |
| Product Net Width | 56.4 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 136 mm |
| Product Net Weight | 1.04 kg |
| EAN | 4013614523816 |
| Customs Tariff Number | 85363030 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
