Description

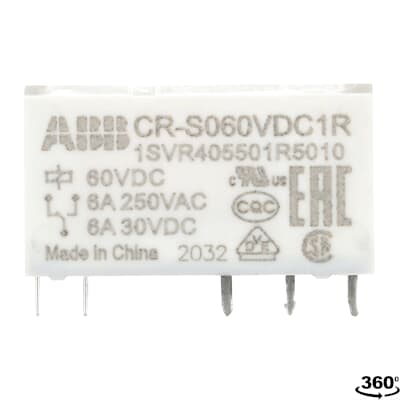

Describes a slim pluggable interface relay for PCB or ABB socket mounting, 60 V DC control, 1 c/o (SPDT) output rated 250 V / 6 A, 6.2 mm wide, UL 94-V0 certified, usable for isolation, amplification, and signal matching. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Control Supply Voltage (Us) | 60 V DC |
|---|---|
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | IP20 |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Function | Pluggable slim interface relay CR-S |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 61810-1; UL 508 |
| Ambient Air Temperature | Operation −40 … +85 °C; Storage 0 … +40 °C |
| Product Net Width | 5 mm |
| Product Net Height | 15 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Weight | 0.005 kg |
| EAN | 4013614499166 |
| Customs Tariff Number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
