Description

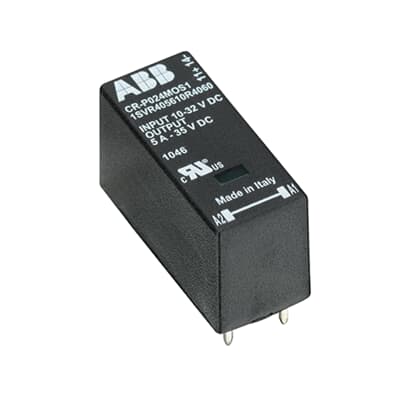

The CR-P024MOS1 pluggable optocoupler with MOS-FET output is suitable for direct mounting on a printed circuit board or use in conjunction with ABB’s sockets. This relay operates with a 24 V DC rated control supply voltage and has a maximum switching voltage of 35 V DC and maximum switching current of 5 A. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable pcb optocoupler CR-P |
|---|---|
| Rated control supply voltage | 10 … 32 V DC |
| Output | MOSFET |
| Output signal | 35VDC / 5A |
| Degree of protection | IP67 |
| Standards | IEC/EN 62314 |
| Ambient air temperature | Operation -20 … +50 °C; Storage -20 … +70 °C |
| Width | 12.7 mm |
| Height | 15.7 mm |
| Depth | 29 mm |
| Weight | 0.011 kg |
| EAN | 4013614509421 |
| Customs tariff number | 85369095 |
| Truncation | page content truncated after ETIM9 section; RatOpeVol/RatedFrequency/OutputSignal extra rows/TerminalType/MountingPosition/MaxOpeAltPer not visible |
| Country of origin | Italy |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
