Description

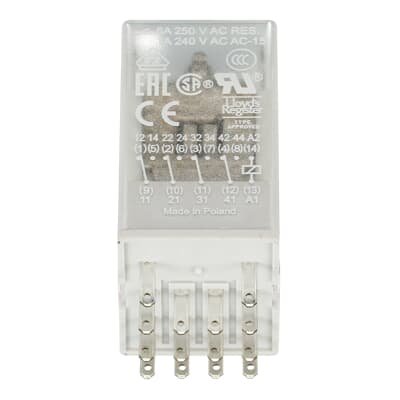

A miniature, pluggable interface relay intended for an ABB CR-M socket; when socket-mounted, it can snap onto DIN rail. It uses a 24 V AC control supply and has four changeover (SPDT) outputs rated 250 V / 6 A. A test button allows manual actuation of the output contacts, and an LED shows coil energization. Sockets, logic sockets, function modules, holders, and markers are accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Control Supply Voltage (Us) | 24 V AC |
|---|---|
| Output | 4 C/O (SPDT) |
| Contact Rating | 250 V / 6 A |
| Integrated Features | test button; LED |
| Product Type | Pluggable interface relay; miniature relay |
| Mounting Type | DIN rail when plugged into a socket |
| Product Net Width | 21.2 mm |
| Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm |
| Product Net Weight | 0.033 kg |
| EAN | 4013614497698 |
| Country of origin | Poland |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
