Description

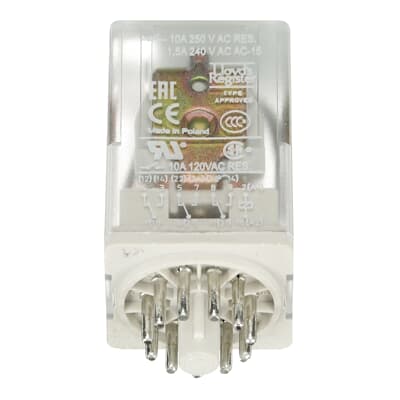

The CR-U125DC3 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 125 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it’s output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Contact output | 3 c/o (SPDT) |
|---|---|
| Contact rating | 250 V / 10 A |
| Width | 35 mm |
| Height | 54.4 mm |
| Depth | 35 mm |
| Weight | 0.083 kg |
| Control supply | 125 V DC |
| Features | integrated test button; integrated LED |
| EAN | 4013614498749 |
| Page availability block | Country of Origin=Germany; Lead Time=0 day (some suppliers 35 day); Made To Order=No; Product Sales Status=Active; Quote Only=No; Warranty Return=Product under warranty must be returned |
| Customs Tariff Number | not present in any successful capture |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
