Description

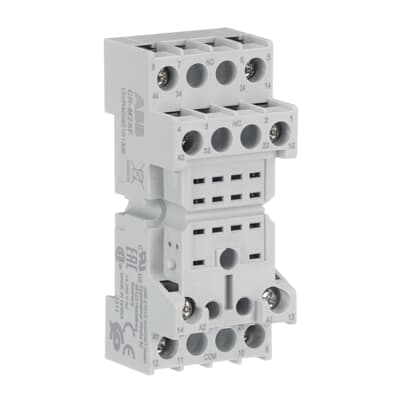

The CR-M2SF socket is from the CR-M (miniature) relay range. | The standard socket is suitable for CR-M relays with 2 c/o (SPDT) output contacts. | The socket has fork type connection terminals. | Pluggable function modules, holder and marker are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Accessory for interface relays CR-M |
|---|---|
| Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Standard socket for miniature relay 2 c/o |
| Rated Operational Voltage | 250 V |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A |
| Rated Insulation Voltage (Ui) | 4 V |
| Terminal Type | Fork / Screw Terminals |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61984; UL 508 |
| Ambient Air Temperature | Operation -40 … +70 °C; Storage -40 … +70 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Product Net Width | 27 mm |
| Product Net Height | 42.5 mm |
| Product Net Depth / Length | 82 mm |
| Product Net Weight | 0.04 kg |
| EAN | 4013614528644 |
| Customs Tariff Number | 85366990 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG; Rigid 2x 20-14 AWG; Stranded 2 x 20-14 AWG |
| Flammability According to UL94 | V-0 |
| Country of origin | China |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
