Description

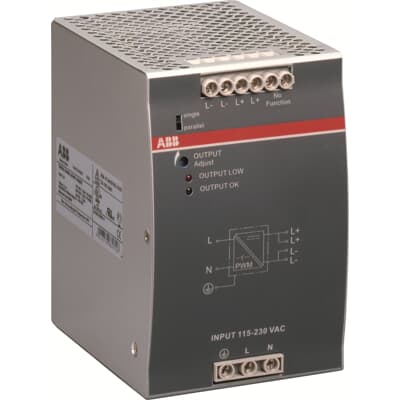

The CP-E 48/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 240 W, rated output current is 5 A at an output voltage of 48 V DC. The output voltage is adjustable within a range of 47 to 56 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Output voltage | 48 V DC (adjustable 47-56 V DC) |
|---|---|
| Output current | 5 A (rated) |
| Output power | 240 W (rated) |
| Input voltage range | 90-132 V AC / 180-264 V AC / 210-375 V DC (rated 115 or 230 V AC, auto select) |
| Output characteristic | U/I |
| Dimensions W | 83 mm |
| Dimensions D | 123.6 mm |
| Dimensions H | 123.6 mm |
| Net weight | 1.322 kg |
| Width | 83 mm |
| Depth | 123.6 mm |
| Height | 123.6 mm |
| Parallel operation | up to 3 units in parallel for capacity increase |
| EAN | 4016779669726 |
| Customs tariff number | 85044095 |
| Designation | CP-E 48/5.0 |
| Series | CP-E |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
