Description

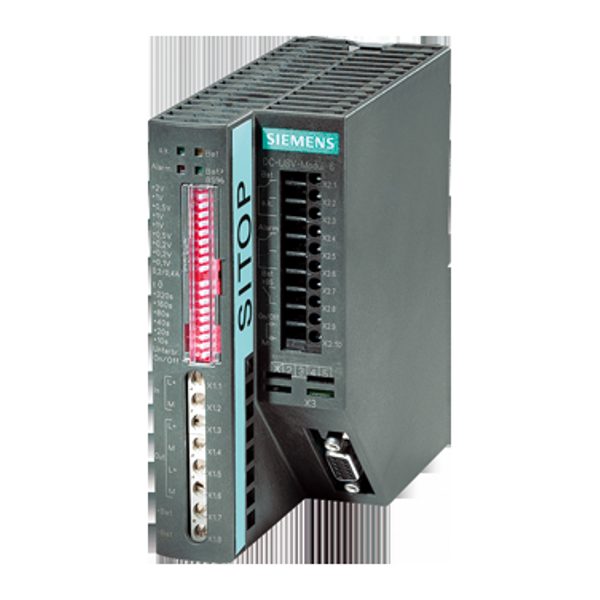

Siemens 6EP1931-2EC21 DC UPS. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SITOP |
| Series | DC UPS |
| Operating temperature | 380.3 kg |
| Net weight | 0.4 kg |
| type of current supply | DC UPS 24 V/15 A |
| supply voltage at DC rated value | 24 V |
| input voltage at DC | 22 … 29 V |
| adjustable response value voltage for buffer connection preset | 22.5 V |
| adjustable response value voltage for buffer connection | 22 … 25.5 V; Adjustable in 0.5 V increments |
| input current at rated input voltage 24 V rated value | 15 A; + approx. 1 A with empty battery |
| formula for output voltage | Vin – approx. 0.5 V |
| startup delay time typical | 1 s |
| voltage increase time of the output voltage typical | 60 ms |
| output voltage in buffering mode at DC | 19 … 28.5 V |
| rated value | 15 A |
| in normal operation | 0 … 15 A |
| peak current | 15.7 A |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
