Description

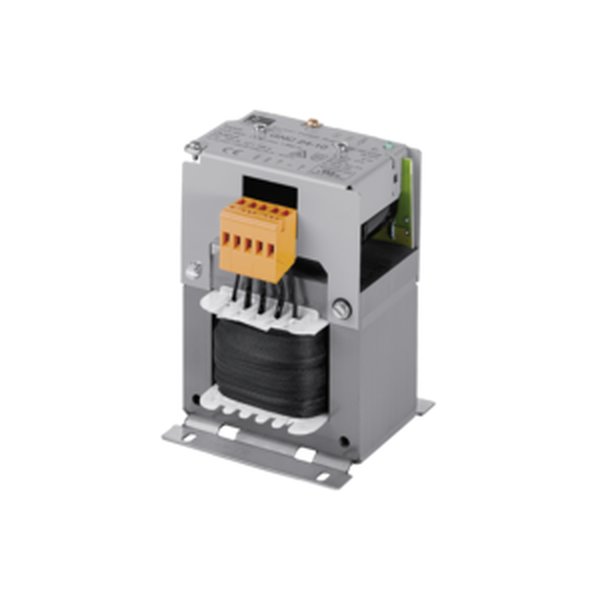

Block GNC 24-2,5 — Unregulated DC power supply. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | GNC 24-2,5 |
| Product Category | Power Supplies |
| Series | GNC |
| Duty Cycle | 100 % |
| EN Insulation class | B (130°C) |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 7.6 W |
| No-Load Losses | 5.7 W |
| Power | 60 VA |
| Wire material | Copper |
| UL Insulation class | class 130 |
| Efficiency | 81.9 % |
| Short circuit proof | not short-circuit proof |
| Cooling type | AN |
| Switching group | Ii0 |
| Max. installation height | 2,000 m / 6,562 ft |
| Ambient temperature | -20 °C to 60 °C / -4 °F to 140 °F |
| Protection type | IP00 |
| Output terminal | Screw terminal |
| Input terminal | Screw terminal |
| Terminal PE | Screw terminal |
| Width | 76 mm / 2.99 in |
| Height | 140 mm / 5.51 in |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
