Description

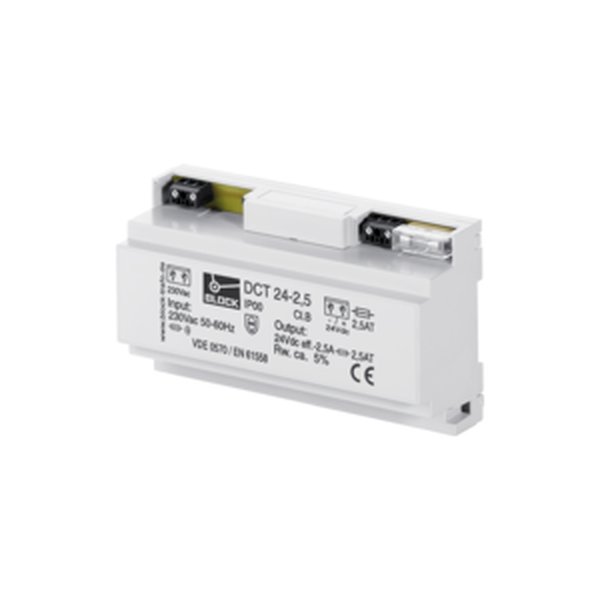

Block DCT 24-2,5 — Non-stabilized DC power supply. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | DCT 24-2,5 |
| Product Category | Power Supplies |
| Series | DCT |
| Duty Cycle | 100 % |
| EN Insulation class | A (105°C) |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 10.64 W |
| No-Load Losses | 2.88 W |
| Power | 60 VA |
| Wire material | Copper |
| Efficiency | 81.6 % |
| Short circuit proof | conditionally short-circuit proof |
| Cooling type | AN |
| Switching group | Ii0 |
| Max. installation height | 2,000 m / 6,562 ft |
| Ambient temperature | -20 °C to 25 °C / -4 °F to 77 °F |
| Protection type | IP00 |
| Protection class (prepared) | II |
| TS35 rail mounting possible | ja |
| Output terminal | Screw terminal |
| Input terminal | Screw terminal |
| Width | 94 mm / 3.7 in |
| Height | 63 mm / 2.48 in |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
