Description

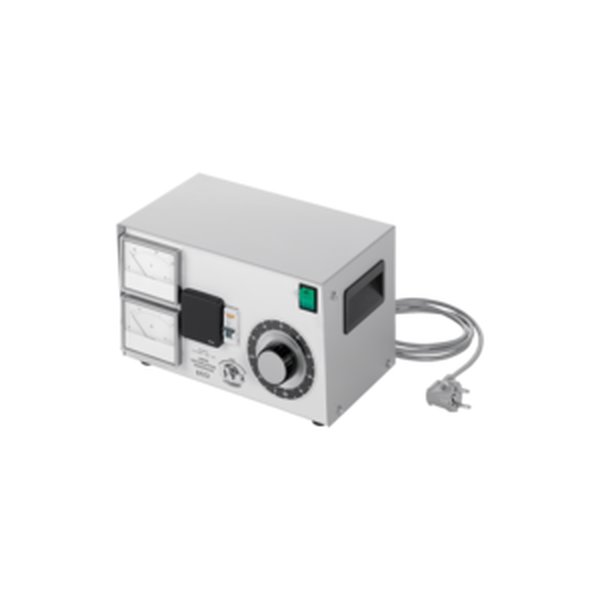

Block BR 351 — Laboratory power supply. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | BR 351 |
| Product Category | Power Supplies |
| Series | BR |
| Power | 350 VA |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 20 W |
| No-Load Losses | 11 W |
| EN Insulation class | B (130°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 92 % |
| Short circuit proof | conditionally short-circuit proof |
| Cooling type | AN |
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP20 |
| Protection class (prepared) | II |
| Input terminal | Protective contact plug |
| Output terminal | Protective contact socket |
| Width | 318 mm / 12.52 in |
| Height | 195 mm / 7.68 in |
| Depth | 225 mm / 8.86 in |
| Weight | 12.774 kg / 28.162 lbs |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
