Description

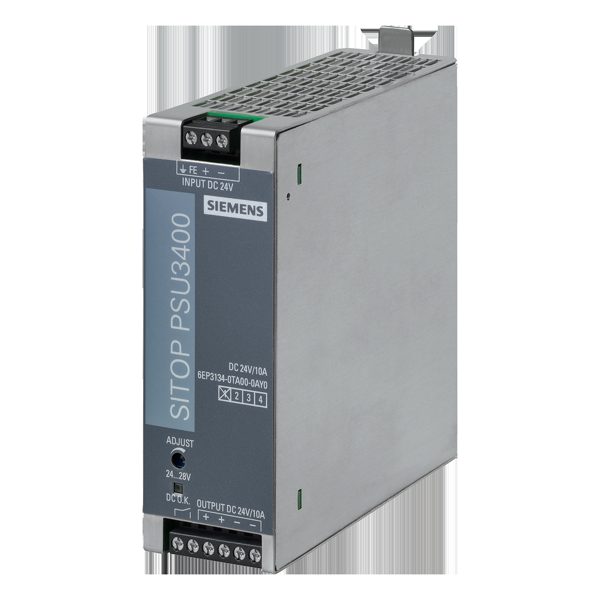

Siemens 6EP3134-0TA00-0AY0 Power supply SITOP DC-DC convert. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SITOP |
| Product type | Power supply SITOP DC-DC converter |
| Series | PSU3400 |
| Operating temperature | -25 … +70 °C; with natural convection |
| Net weight | 0.6 kg |
| type of current supply | 24 V/10 A |
| supply voltage at DC | 24 V |
| input voltage at DC | 14 … 32 V |
| buffering time for rated value of the output current in the event of power failure minimum | 5 ms |
| operating condition of the mains buffering | at Vin = 24 V |
| at rated input voltage 24 V | 10.8 A |
| current limitation of inrush current at 25 °C maximum | 15 A |
| I2t value maximum | 0.6 A²·s |
| adjustable output voltage | 24 … 28 V |
| relative overall tolerance of the voltage | 1 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.3 % |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
