Description

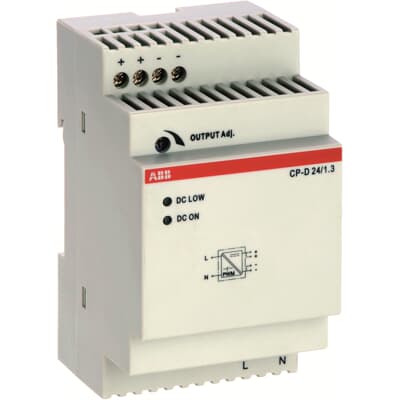

The CP-D 24/1.3 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 30 W, rated output current is 1.3 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Switch mode power supply |
|---|---|
| Rated Input Voltage | 100 … 240 V AC |
| Input Voltage range | 90 … 264 V AC / 120 … 375 V DC |
| Rated Frequency | 50 / 60 Hz |
| Rated Frequency Limits | 47 … 63 Hz |
| Characteristic of Output | U/I Characteristic Curve |
| Rated Output Power | 30 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage adjustable | 24 … 28 V DC |
| Rated Output Current | 1.3 A |
| Rated Impulse Withstand Voltage | Input Circuit / Output Circuit 3 kV |
| Rated Insulation Voltage | Input Circuit / Output Circuit 300 V; Input Circuit / PE 300 V; Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20 / Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity – Input | Flexible with Ferrule 0.2 … 2.5 mm2; Rigid 0.2 … 2.5 mm2 |
| Connecting Capacity – Output | Flexible with Ferrule 0.2 … 2.5 mm2; Rigid 0.2 … 2.5 mm2 |
| Wire Stripping Length | Input Circuit 7 mm / Output Circuit 7 mm |
| Mounting on DIN Rail | TH35-15 acc. to IEC 60715; TH35-7.5 acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.107.1; CAN (list truncated on page) |
| Product Net Width | 53 mm |
| Product Net Height | 91 mm |
| Product Net Depth / Length | 57.5 mm |
| Product Net Weight | 0.196 kg |
| Number of Phases | 1-phase |
| Tightening Torque | Input Circuit 0.7 N.m / Output Circuit 0.7 N.m |
| Recommended Screw Driver | PH1 |
| Customs Tariff Number | 85044095 |
| EAN | 4016779661171 |
| Country of origin | Taiwan |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
