Description

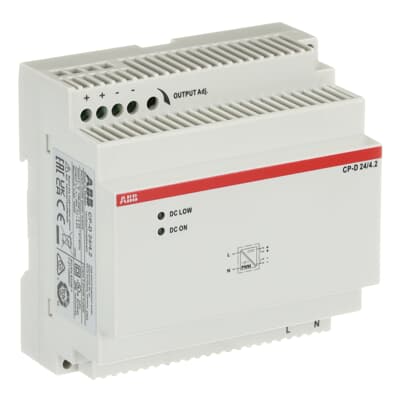

The CP-D 24/4.2 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 100 W, rated output current is 4.2 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Switch mode power supply |
|---|---|
| Rated Input Voltage (U_IN) | 100 … 240 V AC |
| Input Voltage (U_in) | 90 … 264 V AC; 120 … 375 V DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency Limits | 47 … 63 Hz |
| Characteristic of Output | U/I Characteristic Curve |
| Rated Output Power | 100 W |
| Output Power | 100 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (U_out) | 24 V DC; 24 … 28 V DC |
| Rated Output Current | 4.2 A |
| Output Current | 4.2 A |
| Output Current Maximum (I_out) | 4.2 A |
| Rated Impulse Withstand Voltage (U_imp) | Input Circuit / Output Circuit 3 kV |
| Rated Insulation Voltage (U_i) | Input Circuit / Output Circuit 300 V; Input Circuit / PE 300 V; Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20; Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 … 2.5 mm2; Rigid 0.2 … 2.5 mm2 |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 … 2.5 mm2; Rigid 0.2 … 2.5 mm2 |
| Wire Stripping Length | Input Circuit 7 mm; Output Circuit 7 mm |
| Product Net Width | 89.9 mm |
| Product Net Height | 91 mm |
| Product Net Depth / Length | 57.5 mm |
| Product Net Weight | 0.386 kg |
| Number of Phases | 1-phase |
| Tightening Torque | Input Circuit 0.7 N.m; Output Circuit 0.7 N.m |
| Recommended Screw Driver | PH1 |
| Customs Tariff Number | 85044095 |
| EAN | 4016779661195 |
| Country of origin | Taiwan |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
