Description
Monitors up to 100 bus devices in KNX systems, which can be divided into 5 groups. The devices are monitored to ensure their presence and minimum functionality (send and receive). Monitoring can be undertaken based on the physical address or the group address. A total of four different monitoring modes are available. No additional power supply required, the device is powered from KNX bus. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Degree of Protection | IP20 |
|---|---|
| Product Range | KNX |
| Power Loss | 0.3 W ; Total 0.3 W |
| Mounting Type | DIN-Rail |
| Colour | light grey |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.095 kg |
| EAN | 4016779649919 |

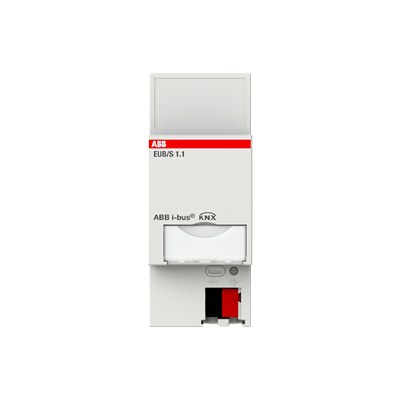

| Catalog Description | EUB/S1.1 KNX Monitoring Unit, MDRC |
| Data Sheet, Technical Information | 2CDC513025D0202 ; 2CDC513028D0201 |
| Compatible Bus Systems | KNX (TP) |
| Number of Batteries | 0 |
| EPLAN Data | 9AAC189209_EPLAN |
| E-Number (Finland) | 2818985 |
| E-Number (Norway) | 4544355 |
| E-Number (Sweden) | 1757030 |
| E-Number (Switzerland) | 405680205 |
| Scip | d122f398-8eb1-4443-b356-8f422045e538 Germany |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable – Compliant |
| Unspsc | 32151705 |
| Object Classification Code | A |
| Country of origin | Germany |
| Customs tariff number | 85389091 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
