Description

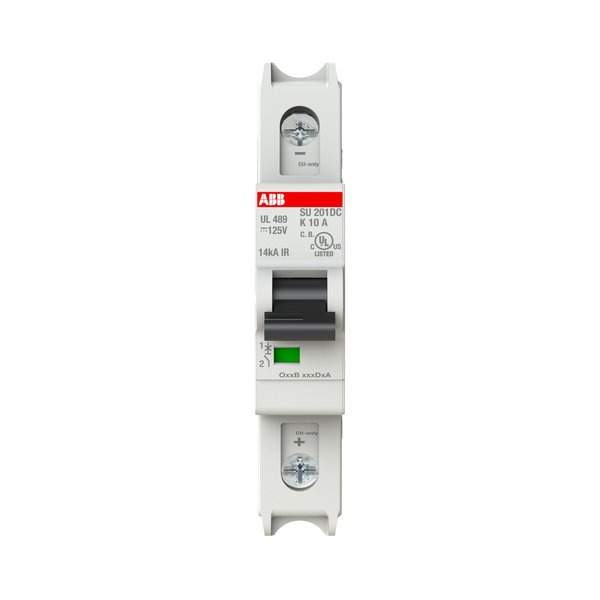

SU201DC-K10 Miniature Circuit Breaker K-Char., 14kA, 10A, 1P. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Power Supply Connection | Please Note Polarity of Device |
|---|---|
| Contact Position Indication | ON / OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tripping Characteristic | K |
| Rated Voltage (Ur) | 125 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 250 V |
| Rated Impulse Withstand Voltage (Uimp) | 3 kV |
| Input Voltage Type | DC |
| Rated Current (In) | 10 A |
| Power Loss | 1.6 W |
| Overvoltage Category | III |
| Maximum Operating Voltage UL/CSA | 125 V DC |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Housing Material | Insulation Group I, RAL 7035 |
| Width | 17.5 mm |
| Height | 95 mm |
| Depth | 69 mm |
| Weight | 0.12 kg |
| EAN | 4053546176018 |
| Energy Limiting Class | 3 |
| Electrical Endurance | 6000 DC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 1 |
| Tightening Torque | 2.8 N·m |
| Actuator Marking | I / O |
| Recommended Screw Driver | 2 |
| Accessories Available | Yes |
| Connecting Capacity | Flexible 0.75 … 25 mm²; Rigid 0.75 … 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Interrupting Rating acc. to UL489 | (125 V DC) 14 kA |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 81.9 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Germany |
| Customs tariff number | 85362010 |
| Manufacturer standard delivery time | 30 days |
| Packaging unit | Package x 10 |
| Product status (supplier data) | New product |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
