Description

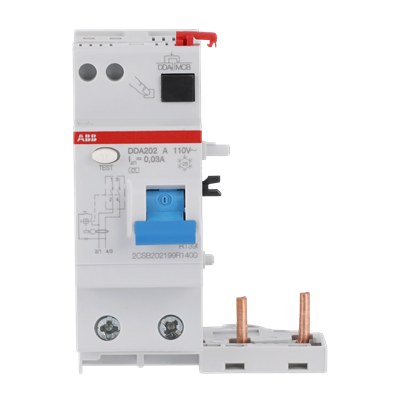

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. This particular serias has the minimum operating voltage of test buttom 0f 110V and it is suitable for application at 230V. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Test Voltage (Ut) | 110…254 V |
|---|---|
| Rated Voltage (Ur) | 230…230 V |
| Rated Current (In) | 40 A |
| Number of Poles | 2P |
| Rated Residual Current | 30 mA |
| Rated Frequency (f) | 50 / 60 Hz |
| Operating Characteristic | Instantaneous |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Height | 93 mm |
| Width | 70 mm |
| Depth | 69 mm |
| Weight | 395 g |
| Number of Modules | 4 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
