Description

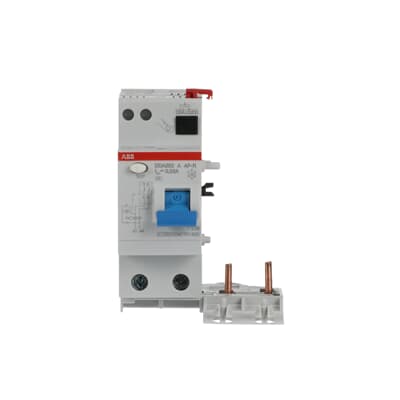

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, providing the best compromise between safety and continuity in the service thanks to the resistance to unwanted trippings. Protection against indirect contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Auxiliary / tripping voltage | 195…254 V |
|---|---|
| Rated Voltage | 230/400 V |
| Rated Current | 40 A |
| Number of Poles | 2P |
| Rated Residual Current | 30 mA |
| Rated Frequency | 50 / 60 Hz |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Rated Insulation Voltage | acc. to IEC/EN 60664-1 500 V |
| Height | 93 mm |
| Width | 70 mm |
| Depth | 69 mm |
| Weight | 325 g |
| Number of Modules | 4 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 24 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
