Description

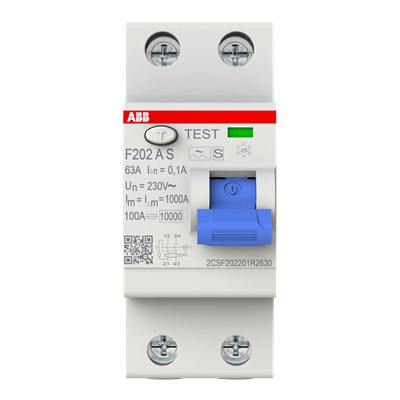

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Leakage Current Type | A |
| Operating Characteristic | Selective |
| Number of Poles | 2P |
| Rated Current (In) | 63 A |
| Rated Residual Current | 100 mA |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Test Voltage (Ut) | 110-254 V |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Maximum Surge Current | 5 kA |
| Power Supply Connection | Arbitrary |
| Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Depth | 69 mm |
| Height | 85 mm |
| Width | 35 mm |
| Weight | 200 g |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Tightening Torque | 2.8 N·m |
| Connecting Capacity | Busbar 10 mm²; Rigid 25 mm²; Flexible 25 mm² |
| Accessories Available | Yes |
| Carbon Footprint | Full Lifecycle 5.803452 kg CO₂ eq |
| EAN | 8012542823001 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
