Description

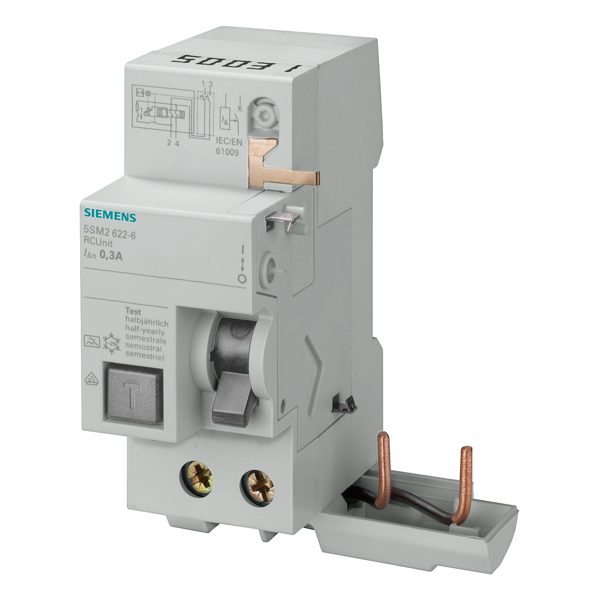

Siemens 5SM2322-6 5SM2 RCD-unit. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SENTRON |
| Product type | RCD-unit |
| Series | 5SM2 |
| Application / design | Instantaneous |
| Number of poles | 2 |
| Net weight | 189 g |
| product version | for 5SY |
| design of pole | 2 poles |
| size of installation devices according to DIN 43880 | 1 |
| mechanical service life (operating cycles) typical | 10 000 |
| type of voltage of the operating voltage | AC |
| insulation voltage (Ui) rated value | 460 V |
| surge voltage resistance rated value | 4 000 V |
| tripping fault current rated value | 30 mA |
| at 40 °C rated value | 37.2 A |
| at 50 °C rated value | 36 A |
| at 55 °C rated value | 34.8 A |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
