Description

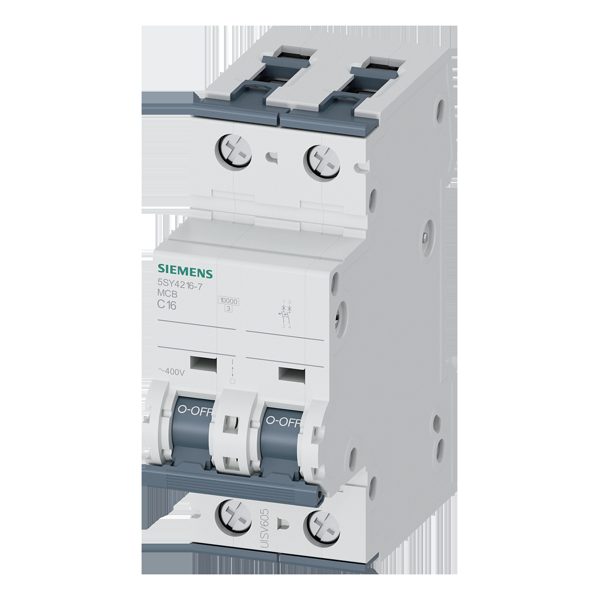

Siemens 5SY4216-7 Miniature circuit breaker. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SENTRON |
| Product type | Miniature circuit breaker |
| Number of poles | 2 |
| Net weight | 298 g |
| design of pole | 2P |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| type of voltage of the operating voltage | AC |
| with single-phase operation at AC rated value | 440 V |
| supply voltage with single-phase operation at AC rated value | 230 V |
| at 40 °C rated value | 15.02 A |
| at 50 °C rated value | 13.98 A |
| at 55 °C rated value | 13.44 A |
| at 60 °C rated value | 12.86 A |
| operational current at AC rated value | 16 A |
| at DC rated value | 60 V |
| value range of the supply voltage frequency | 50/60 Hz |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
