Description

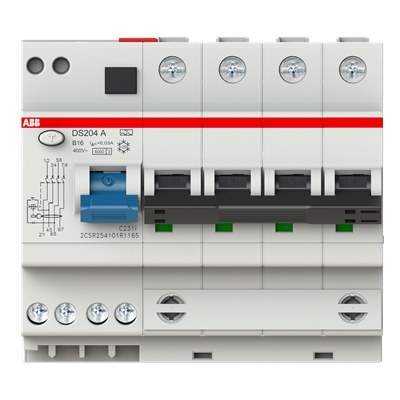

Residual Current Circuit Breaker with Overcurrent Protection DS200 – 4P – 30 mA – 16 A – B – Type A – Instantaneous. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Number of Poles | 4P |
| Number of Protected Poles | 4 |
| Rated Current (In) | 16 A |
| Rated Residual Current | 30 mA |
| Tripping Characteristic | B |
| Operating Characteristic | Instantaneous |
| Rated Voltage (Ur) | 400 V AC |
| Rated Operational Voltage | 400 V AC |
| Rated Short-Circuit Capacity | (400 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 10 kA |
| Maximum Breaking Capacity | 6 kA |
| Short-Circuit Current Rating (SCCR) UL/CSA | 30 mA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | Total 6.6 W |
| Power Supply Connection | Arbitrary |
| Release Type | B |
| Position of Neutral Terminals | Right / Left |
| Ambient Air Temperature | Operation -25 … +55 °C; Storage -40 … +70 °C |
| Product Net Width | 105 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 69 mm |
| Weight | 775 g |
| EAN | 8012542859802 |
| Number of Earth Leakage Circuit Breakers (ELCBs) | 1 |
| Electrical Endurance | 10000 cycle |
| Options Provided | None |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm²; Rigid 16 … 25 mm²; Flexible 16 … 25 mm² |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Country of origin | Italy |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
