Description

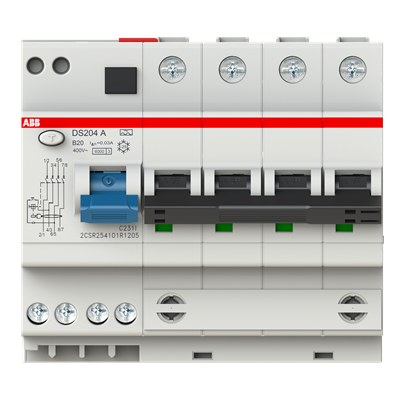

Residual Current Circuit Breaker with Overcurrent Protection DS200 – 4P – 30 mA – 20 A – B – Type A – Instantaneous. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of residual current | Type A |
|---|---|
| Number of poles | 4P |
| Number of protected poles | 4 |
| Rated current | 20 A |
| Rated residual current | 30 mA |
| Tripping characteristic | B |
| Operating characteristic | Instantaneous |
| Rated voltage | 400 V AC |
| Rated operational voltage | 400 V AC |
| Rated short-circuit capacity | (400 V AC) 6 kA |
| Rated ultimate short-circuit breaking capacity | (400 V AC) 10 kA |
| Maximum breaking capacity | 6 kA |
| Short-circuit current rating UL/CSA | 30 mA |
| Rated frequency | 50 / 60 Hz |
| Power supply connection | Arbitrary |
| Power loss | Total 9.3 W |
| Release type | B |
| Position of neutral terminals | Right; Left |
| Ambient air temperature | Operation -25 … +55 °C; Storage -40 … +70 °C |
| Product net width | 105 mm |
| Product net height | 93 mm |
| Product net depth / length | 69 mm |
| Weight | 775 g |
| EAN | 8012542859901 |
| Number of earth leakage circuit breakers | 1 |
| Electrical endurance | 10000 cycle |
| Options provided | None |
| Accessories available | Yes |
| Connecting capacity | Busbar 10 mm²; Rigid 16 … 25 mm²; Flexible 16 … 25 mm² |
| Resistance to vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to shock | 25g 2 shocks 13 ms |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
