Description

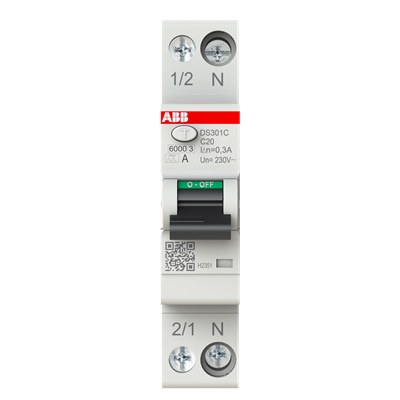

RCBO, 1-pole + N, C-characteristics, IΔn 0.3 A, 230 V AC, Width 1 modular units. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Frequency | 50/60 Hz |
|---|---|
| Current rating | 20 A |
| Tripping curve | C |
| Residual current | 0.3 A |
| Residual current tripping type | AC |
| Power dissipation | 2.9 W/pole |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | 181 … 264 V |
| Dielectric Test Voltage | 2.5 kV |
| Primary Rated Impulse Withstand Voltage | 4 kV |
| Rated Current Sensitivity | 0.3 A |
| Rated Residual Operating Current (I<sub>Δn</sub>) | 6000 A |
| Leakage Current Type | A |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Operating Characteristic | Instantaneous |
| Rated Cross-Section | 1 – Solid-Core 1 … 10 mm² | 4 – Multi-Wired 1 … 6 mm² |
| Wire Stripping Length | 10 mm |
| Tripping Characteristic | C |
| Rated Voltage (U<sub>r</sub>) | 230 V |
| Rated Operational Voltage | acc. to IEC 60898-1 230 / 240 V AC |
| Rated Insulation Voltage (U<sub>i</sub>) | 500 V |
| Rated Current (I<sub>n</sub>) | 20 A |
| Rated Residual Current | 300 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Average per Pole 1.1 W | Phase Pole 2.1 W | Neutral Pole 0.1 W | Total 2.2 W |
| Overvoltage Category | III |
| Degree of Protection | Terminals IP20 | Housing IP40 |
| Pollution Degree | 2 |
| Product family | MiniSocket |
| Product type | RCBO |
| Standards | IEC/EN 61008-1; IEC/EN 61009-1 | IEC/EN 61009-2-1 |
| Ambient air temperature | -5 to +40 °C; -25 … 55 °C |
| Mounting type | DIN rail 35×7.5/15; DIN-Rail |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption – 45 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 71.18 % | Recycled Paper – 0 % |
| Position of Neutral Terminals | Right |
| Accessory Type | Please refer to the datasheet |
| Housing Type | Insulation group I – II, RAL 7046 |
| Release Type | C |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Terminal Type | Screw Terminals |
| Reference Ambient Air Temperature | 30 °C |
| Mounting Position | Any |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.6 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.11 kg |
| Built-In Depth (<em>t<sub>2</sub></em>) | 17.6 mm |
| EAN | 7333394007828; 8012542788959 |
| Tariff number | 90.03 |
| Product status | active |
| Polar description | 1N |
| Sales path | Wholesale |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS301C – 1P+N – 300 mA – 20 A – C – Type A – Instantaneous |
| Carbon Footprint | Full Lifecycle 2.1 kg CO₂ eq |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 1 |
| Fault Indication | Blue Flag Below Toggle |
| Tightening Torque | 1.2 N·m |
| Options Provided | Screwless ( Please check equivalent DSX301C ) |
| Accessories Available | Yes |
| Cable Size | 16 mm² |
| Connecting Capacity | Screw Clamp / Rigid 77 … 10 mm² | Screw Clamp / With Insulated Ferrule 1 … 6 mm² | Screw Clamp / Without Insulated Ferrule 1 … 6 mm² | Screw Clamp / Flexible 1 … 10 mm² |
| Environmental Conditions | 39 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms |
| Object Classification Code | F |
| Etim9 | EC000905 – Earth leakage circuit breaker |
| Etim10 | EC000905 – Earth leakage circuit breaker |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 79.18 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill | UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 28 days |
| Packaging unit | Package x 1 |
| Product status (supplier data) | New product |
