Description

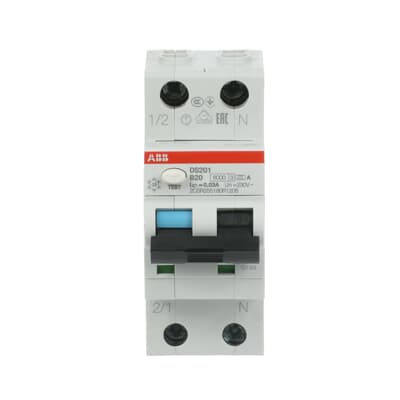

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Test Voltage (Ut) | Minimum 170 V |
| Dielectric Test Voltage | 2 kV |
| Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Operating Characteristic | Instantaneous |
| Rated Cross-Section | 1 – Solid-Core 0.75-25 mm² |
| Wire Stripping Length | 12 mm |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Position of Neutral Terminals | Right |
| Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device |
| Earthing Switch Type | Undelayed |
| Housing Type | Insulation group I – II, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
| Built-In Depth (<em>t<sub>2</sub></em>) | 69 mm |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Fault Indication | Blue Flag on Toggle |
| Tightening Torque | 2.8 N·m |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Connecting Capacity | Busbar 10 … 10 mm² |
| Environmental Conditions | 28 cycles |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| E-Number (Finland) | 3211144 |
| E-Number (Sweden) | 2100384 |
| EAN | 8012542969815 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
