Description

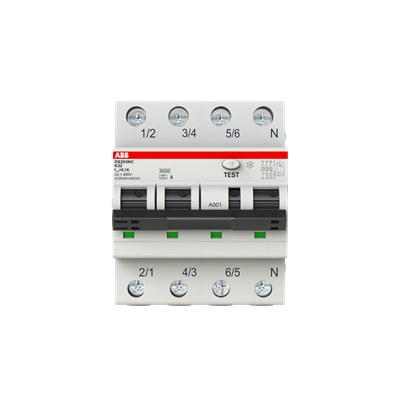

DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Poles | 3P+N |
|---|---|
| Rated current | 32 A |
| Rated voltage | 415 V |
| Residual current | 100 mA |
| Tripping characteristic | K |
| Breaking capacity | 10 kA |
| Power loss | 15.1 W |
| Weight | 480 g |
| EAN | 8012542580621 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 17 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | New product |
| Net dimensions (W x H x D) | 71 x 85 x 69 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
