Description

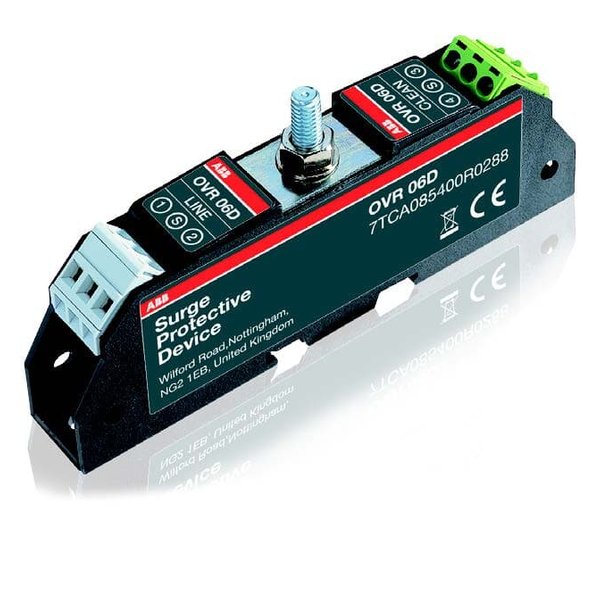

Ovr 06d 6v data spd for 2 wire lines up to 300ma current. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Nominal AC Voltage of the System (U₀) | 6 V |
|---|---|
| Maximum Continuous Operating Voltage (Uc) | 7.79 V |
| Discharge Current | I (max, 8 / 20 µs) 10 kA |
| Number of Protected Poles | 1 |
| Wire Stripping Length | 6 mm |
| Voltage Protection Level (Up) | 10 V |
| Rated Current (Iₙ) | 300 mA |
| Rated Frequency (f) | 800 kHz |
| Nominal AC Voltage of the System (Uo) | 6 V |
| Rated Current (In) | 300 mA |
| Suitable For | To protect systems against transient overvoltages or surges from lightning and electrical switching events |
| Connection Type | Screw Clamp |
| Ambient Air Temperature | Operation -40 … +80 °C |
| Standards | IEC 61643-21 |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 120 mm |
| Product Net Height | 54 mm |
| Product Net Depth / Length | 19 mm |
| Product Net Weight | 0.080 kg |
| Serial Resistance | 9.4 Ω |
| EAN | 5415022371222 |
| Catalog Description | OVR 06D Surge Protective Device |
| Long Description | OVR 06D 6V DATA SPD FOR 2 WIRE LINES UP TO 300mA CURRENT |
| Country of origin | United Kingdom |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 15 days |
| Packaging unit | Package x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
