Description

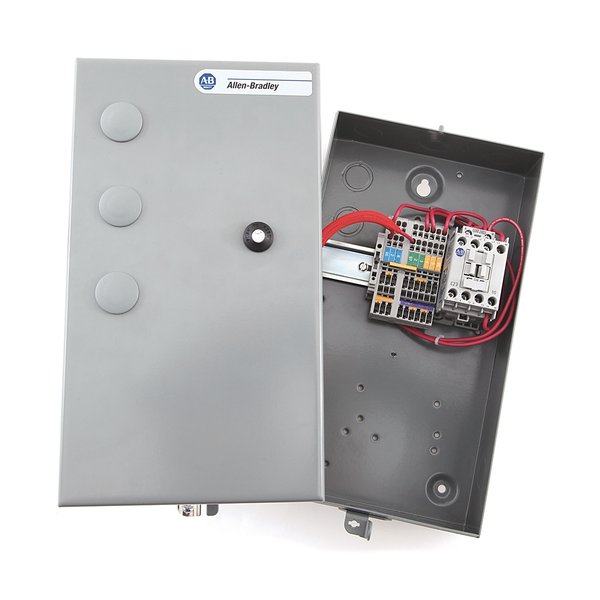

Allen-Bradley 109-C09FCXXX-3-6P-7-901 — IEC Enclosed Starter. Bulletin 109 – IEC Non-Reversing Starter – Enclosed Style, IP66 (Type 3/4/12 – Metal), 9 Amp, 600V 60Hz New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Allen-Bradley |
|---|---|
| Article No. (MPN) | 109-C09FCXXX-3-6P-7-901 |
| Product Category | Contactors |
| Country of Origin | United States of America |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 12 |
| Enclosure type | Type 3/4/12 – IP66 (Metal) |
| Depth | 6.31 mm |
| Height | 11.81 mm |
| Width | 7.87 mm |
| External reset possible | True |
| Factory installed models | HAND-OFF-AUTO selector switch |
| Hp rating | 7.5Hp @ 575V (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 4 kW @ 690V (AC3, AC4), 3-phase, 50 Hz |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 9 A |
| Suitable for emergency stop | True |
| Temperature compensated overload protection | True |
| Type of electrical connection for auxiliary- and control current circu | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| With fuse | False |
| EAN / GTIN | 887172509230 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Allen-Bradley dealer. All parameters are taken from the official manufacturer documentation.
