Description

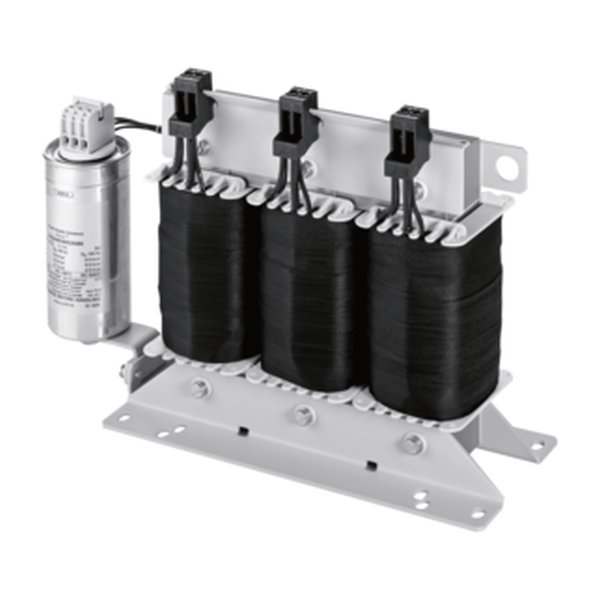

Block HFE 156-230/12 — Radio interference suppression filter. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | HFE 156-230/12 |
| Product Category | Transformers & Reactors |
| Series | HFE 156 |
| Inductance | 5.2 mH |
| Rated current | 12 Aac |
| Rated voltage range | 0 V to 250 V |
| Rated voltage | 230 V |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Power loss | 6.20 W |
| Wire material | Copper |
| Cooling type | AN |
| Ambient temperature | -10 °C to 45 °C / 14 °F to 113 °F |
| Protection type | IP20 |
| Input terminal | Spring cage terminal |
| Output terminal | Spring cage terminal |
| Terminal PE | Flat plug connection |
| Width | 45 mm / 1.77 in |
| Height | 110 mm / 4.33 in |
| Depth | 127.5 mm / 5.02 in |
| Weight | 0.55 kg / 1.213 lbs |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
