Description

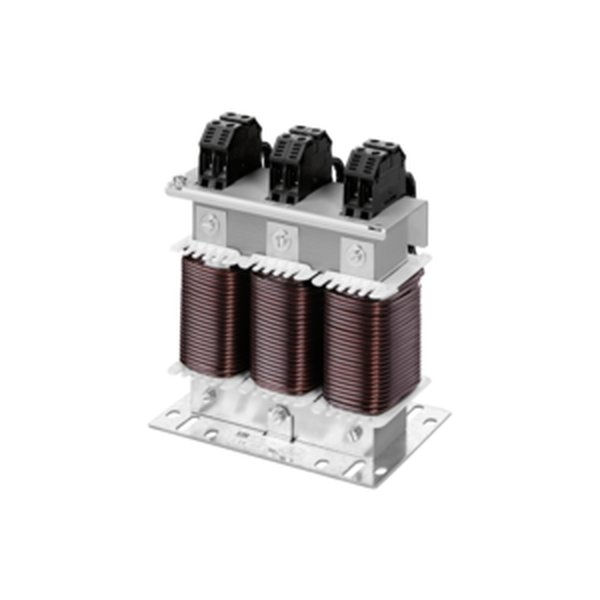

Block LR3 40-5/20 — Line reactor. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | LR3 40-5/20 |
| Product Category | Transformers & Reactors |
| Series | LR3 |
| Inductance | 3x 1.84 mH |
| Rated current | 3x 20 Aac |
| Linear current | 3x 30 Aac |
| Rated voltage range | 0 V to 690 V |
| Rated voltage | 400 V |
| Frequency range | 50 Hz to 60 Hz |
| Short circuit voltage | 5% @ 400 V |
| Motor or converter power | 13.1 kW / 17.57 HP |
| EN Insulation class | F (155°C) |
| UL Insulation class | class 155 |
| Duty Cycle | 100 % |
| Power loss | 40.00 W |
| Wire material | Copper |
| Cooling type | AN |
| Switching group | III0 |
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
| Protection type | IP00 |
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
